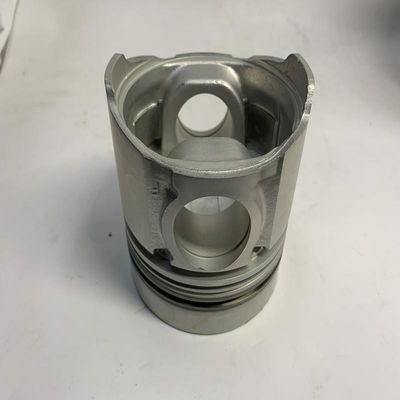

DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280

Customer Reviews
Thanks for your message I will contact you as soon as possible Tel: +8613632344447 Email: TS@enginespiston.com WhatsAPP,WeChat,SKype,+8613632344447 Address: Yingfeng Machinery Market, No. 1192, Zhongshan Avenue, Tianhe District, Guangzhou, China

—— hello

I'm Online Chat Now

DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280

DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280
DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280
DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280 DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280 DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280 DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280 DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280 DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280

Large Image :  DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280

Product Details:
Place of Origin: China
Brand Name: DAILY REFINING
Model Number: DB58T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Heavy duty wooden box, light duty carton
Delivery Time: 5-8 working day
Payment Terms: T/T, Western Union
Supply Ability: 1000

DB58 Engine Piston Kit DB58T Hyundai Doosan Apply To DH225-7 DH220-5 65.02501-0561/0280

Description
Engine Type: High Quality Engine Parts Engine Number: DB58T
Part Number: 65.02501-0561 Product Name: PISTON
Piston Diameter: 102mm Applicable To Model: DH225-7 DH220-5
High Light:

hyundai piston 65.02501-0561 DH225-7

,

DH225-7 hyundai piston 65.02501-0561

,

65.02501-0561 DH225-7 hyundai piston


Doosan, Hyundai DB58T DB58 PISTON Engine Piston Kit DB58T Apply To DH225-7 DH220-5 65.02501-0561

 product description

Used For Dossan DH130 DH150 DH220-5

Dia: 102.0 mm

Part No: 65.02501-0561 65.02501-0562

Top: 3.0 mm

2nd: 2.5 mm

Oil : 4.0 mm

Piston Pin: 36.0*87.0mm

Piston Length: 98.1 mm

Piston Com Chamber: mm

Daewoo engine Piston :

DaewooDB58Piston65.02501-0561 65.02501-0562102.00
DaewooD1146Piston65.02501-0074114.00
DaewooD2366Piston65.02501-0031123.00
DaewooD2848Piston65.02501-0209128.00




Piston skirt and crown

Consist of a steel piston head and an aluminium piston skirt which have a moveable connection to each other via the piston pin. Due to great strength and low wear and tear, it is possible to achieve low exhaust emission values for diesel engines that are subjected to particularly high loads.



Piston comes with bushes
In order to make it possible to increase the loads to which the pin boss can be subjected, this piston has pin boss bushes that are made of a special material



Alfin Pistons
Alfin is inserted within the ring grooves when casting. Alfin is made of special austenitic cast iron. It is tightly bonded metallically to piston body and counteracts the wear in the top or second ring groove.



Cooling channel piston
Cooling channel piston effectively reduce piston body working and groove land temperature under high temperature working condition.



Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner.



Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance. The phosphating layer is easy to wear off and helpful to improve running-in.



Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of Al O . This treatment will improve heat resistance, heat conductivity and anticorrosion, it helps prevent piston roof burn-up.



Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant adhering to coating surface.
