| Brand Name: | DAILY REFINING |
| Model Number: | 6D24 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | Heavy duty wooden box, light duty carton |
| Payment Terms: | T/T, Western Union |
6d24 Engine Piston Kit 6d24 Engine Piston Mitsubishi Apply To Sk430 Hd1430 Sh450 Hd2045
product description

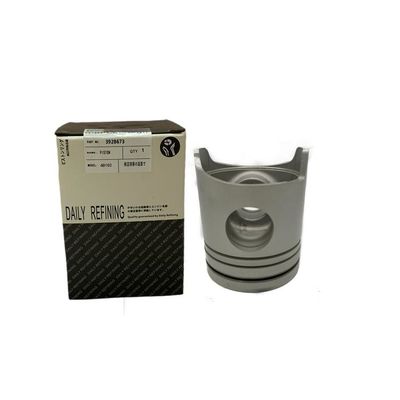

Mitsubishi 6D24 piston, ME152652
Engine: 6D24
1: Piston: ME152652
Dia:130.0 mm
Piston Pin: 50*105mm
Piston Length: 153.2 mm
Piston Com Chamber : 78.2 mm
Remark : sn,alfin, Head anodized , oil gallery
2: Piston Ring: ME151190 SJM31-094ZZ
Top Ring: 3.306 mm
2nd Ring: 3.0mm
3rd Ring:
Oil Ring : 4.0 mm
3: Cylinder Liner: ME051500
In Diameter: 130.0 mm
Out Diameter: 147.0 mm
Total length: 261.8 mm
Flange: 156.0*11.5+1.8 mm
Other piston for Mitsubishi
Mitsubishi 6D24 Piston ME151395
Mitsubishi 6D24 Piston ME152652
Mitsubishi 6D24 Piston ME151409
Mitsubishi 6D24T Piston ME150642
Mitsubishi 6D24T Piston ME151416
Mitsubishi 6D24T Piston ME158096 ME151409
Mitsubishi 6D24T Piston ME153081
Piston skirt and crown
Consist of a steel piston head and an aluminium piston skirt which have a moveable connection to each other via the piston pin. Due to great strength and low wear and tear, it is possible to achieve low exhaust emission values for diesel engines that are subjected to particularly high loads.
Piston comes with bushes
In order to make it possible to increase the loads to which the pin boss can be subjected, this piston has pin boss bushes that are made of a special material
Alfin Pistons
Alfin is inserted within the ring grooves when casting. Alfin is made of special austenitic cast iron. It is tightly bonded metallically to piston body and counteracts the wear in the top or second ring groove.
Cooling channel piston
Cooling channel piston effectively reduce piston body working and groove land temperature under high temperature working condition.
OUR ADVANTAGE:
1. High quality and competitive price.
2. Long life span, good sales-after service.
3. 100% new, strict inspection & test.
4. Standard export packing.
5. One year quality warranty.
6. Have strong stock, small order is acceptable
7. Various kinds are selectable with different car models.
8. Improve power and increase torque
9. Improve fuel economy and reduce fuel consumption
10. Reduce waste emissions and reduce environmental pollution
