When looking for an overhaul kit for a 24-valve Cummins 5.9L engine, here are the key components and considerations:

Components of a 24V Cummins Overhaul Kit

1. **Pistons and Rings**: High-performance pistons with appropriate compression ratios.
2. **Gasket Set**: Complete gasket set, including:
- Head gasket
- Intake and exhaust gaskets
- Valve cover gasket
- Oil pan gasket
3. **Main and Rod Bearings**: Sizing to match the crankshaft.
4. **Timing Components**: Timing chain or gears, tensioners, and guides.
5. **Oil Pump**: New oil pump for reliable lubrication.
6. **Water Pump**: To maintain engine cooling.
7. **Cylinder Head Components**: Valves, valve springs, and retainers if needed.
8. **Injector Seals and O-rings**: Essential for proper fuel delivery.
9. **Fuel Pump**: If required, depending on condition.

Recommendations

- **Brand Quality**: Opt for trusted brands like Mahle, Cummins, or Fel-Pro.
- **Reviews**: Look for customer reviews for specific kits.
- **Consult Forums**: Diesel truck forums can provide insights on reliable suppliers and recommendations.

Additional Tips

- **Service Manual**: Have a service manual handy for torque specs and rebuild procedures.
- **Inspection**: Inspect all components before installation for any signs of wear or damage.
- **Consider Machining**: You may need to machine the block and head for optimal performance.

Here are the general torque specifications for the 24-valve Cummins 5.9L engine during the rebuild process. Always refer to a service manual for your specific model for the most accurate information.

Common Torque Specifications

1. **Cylinder Head Bolts**:
- **Initial Torque**: 125 ft-lbs (with the sequence specified in the manual).
- **Final Torque**: Follow the manufacturer's recommended sequence, typically in multiple steps.

2. **Main Bearing Caps**:
- **Torque**: 105 ft-lbs.

3. **Rod Bolts**:
- **Torque**: 45 ft-lbs, then an additional 90 degrees.

4. **Oil Pan Bolts**:
- **Torque**: 12 ft-lbs.

5. **Intake Manifold**:
- **Torque**: 18 ft-lbs.

6. **Exhaust Manifold**:
- **Torque**: 30 ft-lbs.

7. **Valve Cover**:
- **Torque**: 11 ft-lbs.

Important Notes

- **Torque Sequence**: Always follow the specified torque sequence for head bolts and other components to ensure even pressure.
- **Lubrication**: Use engine oil on bolt threads where specified to achieve accurate torque readings.
- **Re-torquing**: Some components may require re-torquing after initial startup; refer to the service manual.

Final Reminder

For exact specifications, including any variations or additional steps, always consult the specific service manual for your engine model. If you need further details or assistance, let me know!

Isuzu 4LE1 engines are available in some of the following models and applications:

1. Small excavators (Excavators): For example, small excavators of Isuzu ZX35U-5, ZX50U-5, ZX55U-5 and other models may be equipped with 4LE1 engines.

2. Loaders: Some small loaders may be equipped with 4LE1 engines, such as Isuzu CL35, CL55 and other models.

3. Rollers: Some small rollers, such as Isuzu SV40, SV50 and other models, may use 4LE1 engines.

4. Small agricultural machinery (Agricultural Machinery): In some small agricultural machinery, such as small tractors, agricultural transport vehicles, etc., you may find models equipped with 4LE1 engines.

Regarding the cylinder liner kit and maintenance knowledge of Isuzu 4LE1 engine, the following is some relevant information:

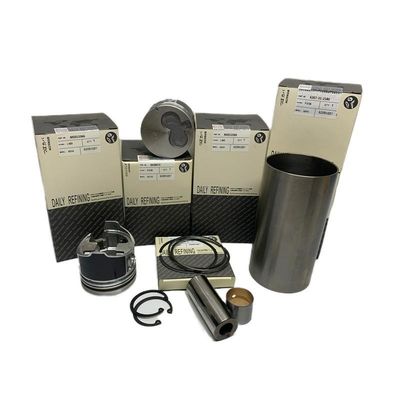

1. Cylinder liner kit consists of:
- Cylinder Liner: A cylindrical part located in the engine cylinder that provides sealing and friction surfaces for piston movement.
- Piston: A moving part installed in the cylinder liner that converts combustion energy into mechanical energy through reciprocating motion.
- Piston Rings: Annular parts installed on the piston to seal the gap between the piston and the cylinder liner to prevent pressure leakage.
- Piston pin (Wrist Pin): The pin that connects the piston and the connecting rod, allowing the piston to be connected to the connecting rod and transmit power.
- Wrist Pin Circlips: Ring-shaped clips fixed on both ends of the piston pin to fix the position of the piston pin.

2. Maintenance knowledge:
- Replacement of cylinder liner kits usually requires specialized skills and tools, and it is recommended to seek help from qualified technicians or automotive repair experts.
- When replacing the cylinder liner kit, it is usually necessary to inspect and replace other related parts, such as pistons, piston rings, piston pins, etc.
- Regular engine maintenance is key to maintaining performance and longevity. Follow the manufacturer's maintenance schedule and recommendations, including regular oil and filter changes, and regular inspection and adjustment of engine parameters.
- Pay attention to the use of suitable tools and correct repair methods to avoid damage to the engine and components.

3. Original factory support:
- Isuzu offers genuine parts and spare parts support to ensure high quality components for its engines.
- If you need to purchase or replace a cylinder liner kit for a 4LE1 engine, provide detailed engine model and requirements to obtain accurate and matching parts information.
