Product Details:
|
Engine Type: | Diesel | Part Number: | 65.02501-0507 |
---|---|---|---|
Product Name: | PISTON | Piston Diameter: | 121MM |
Applicable To Model: | Dh300-7 | ||
High Light: | D1146 Excavator Spare Parts,Excavator Spare Parts 65.02501-0507 |

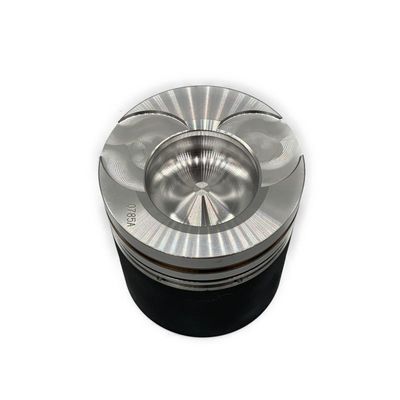

D1146 daewoo excavators spare parts piston 65.02501-0507
product description
part number: |
65.02501-0507 |
For models: |
d1146 |
weight | 2kg |
Warranty period: | high quality low price long life |
Quality: | 1 year |
Piston information:
D1146 Overhaul Kit
D1146 piston ring
D1146 Piston Kit
D1146 cylinder engine piston
D1146 cylinder liner/sleeve
D1146 Full Gasket Kit
D1146 cylinder head gasket
D1146 cylinder head
D1146 cylinder block
D1146 engine assembly
D1146 Camshaft
D1146 crankshaft
D1146 intake valve
D1146 exhaust valve
D1146 crankshaft
D1146 Oil pump
D1146 Connecting rod
D1146 main bearing group
D1146 Connecting rod bearing set
D1146 Fuel pump
D1146 Fuel injection pump
Related engine products:
The installation method of the piston and the installation direction of the piston are as follows:
1. Coat the piston pin and piston pin hole with engine oil, connect the piston and connecting rod with the piston pin, and then install the piston pin snap ring
2. Install the piston ring. Press the wiper blade, the oil ring backing ring, the upper wiper blade, the second air ring, and the first air ring, and install each ring on the piston in sequence; when assembling each air ring, pay attention to the direction of the piston ring. Up with the words "TOP".
Stagger the two scrapers and the cylinder liner ring at a certain angle, the sharp angle at the interface of the cylinder liner ring points to the top of the piston, and the first ring, the second ring and the upper scraper are 120° or 90° from each other
3. Install the upper bearing shell and connecting rod together.
NOTE: The gap on the bearing pad should line up with the gap on the connecting rod
4. Apply engine lubriing oil on the engine cylinder, hold the piston ring with a special tool, tap the piston head with a wooden handle, and install the piston connecting rod assembly.
Note: The dotted line side of the connecting rod should face the direction of the 1st cylinder of the engine and be consistent with the direction of the arrow on the top of the piston
5. Assemble the connecting rod lower bearing shell and connecting rod cover, and apply engine lubriing oil on the inner surface of the bearing shell.
NOTE: The gap on the bearing pad should line up with the gap on the connecting rod
