| Brand Name: | DAILY REFINING |
| Model Number: | C7 |
| MOQ: | 1 |
| Price: | Negotiable |
| Packaging Details: | Heavy duty wooden box, light duty carton |
| Payment Terms: | T/T, Western Union |

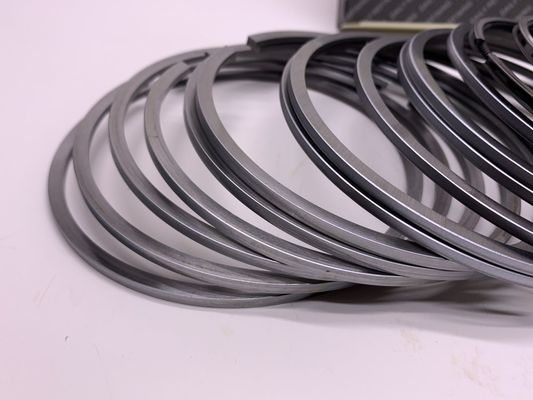

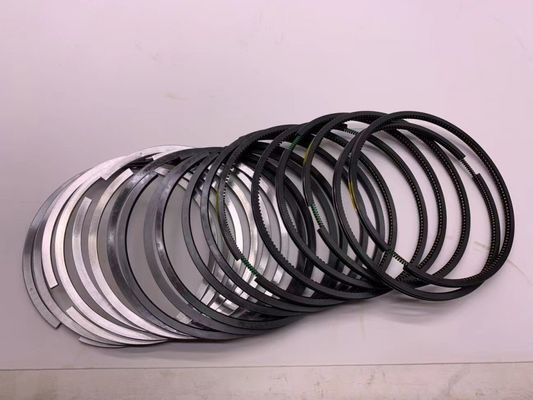

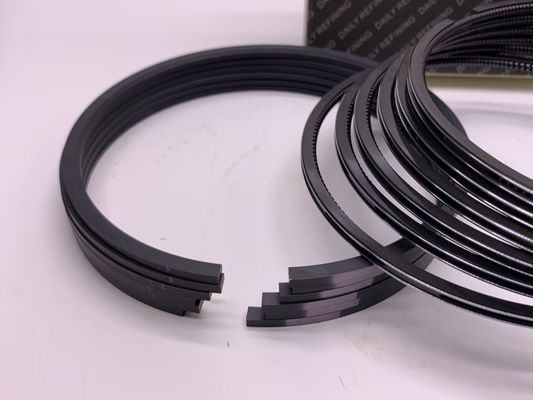

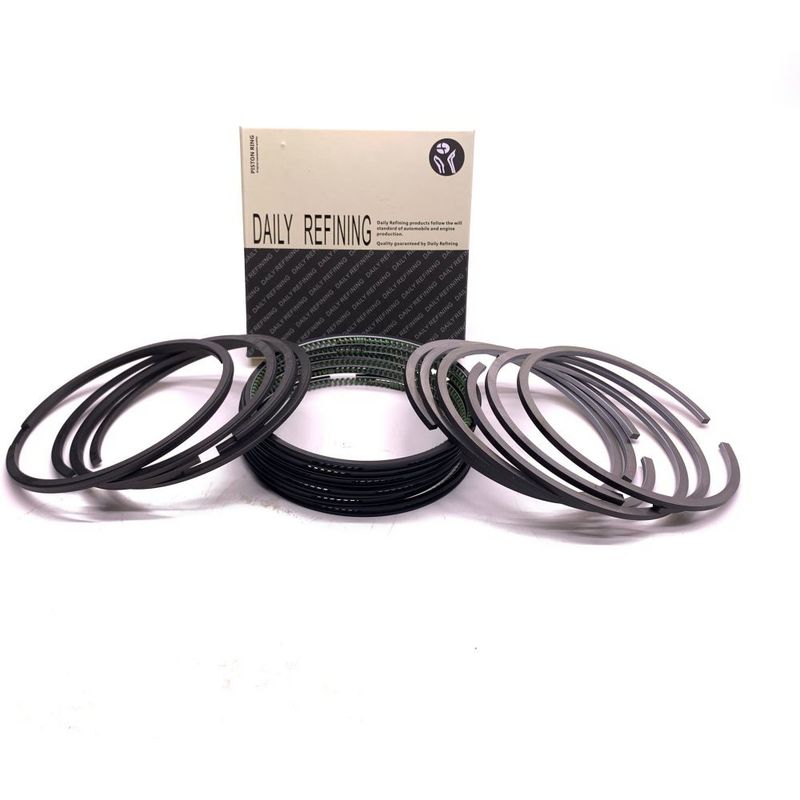

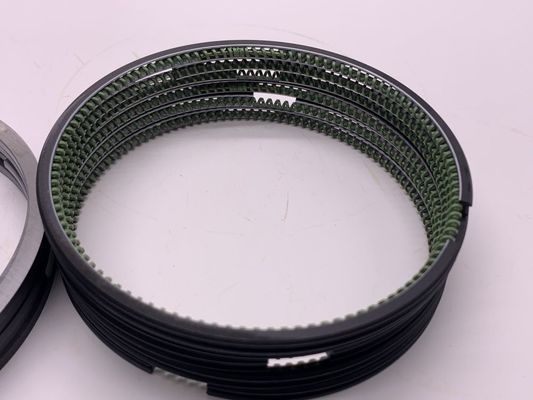

C7 207-7604 engines sale Engine Piston Ring
product description
| part number: |
207-7604 |
| For models: |
C7 |
| weight | 0.1kg |
| Warranty period: | high quality low price long life |
| Quality: | 1 year |
Piston informati
C7 Overhaul Kit
C7 piston ring
C7 Piston Kit
C7 cylinder engine piston
C7 cylinder liner/sleeve
C7 Full Gasket Kit
C7 cylinder head gasket
C7 cylinder head
C7 cylinder block
C7 engine assembly
C7 Camshaft
C7 crankshaft
C7 intake valve
C7 exhaust valve
C7 crankshaft
C7 Oil pump
C7 Connecting rod
C7 main bearing group
C7 Connecting rod bearing set
C7 Fuel pump
C7 Fuel injection pump
Related engine products:
Install the connecting rod and steel piston in the engine, the part number on the connecting rod assembly is loed on the rear of the engine. The rear of the engine is the flywheel end of the engine. Before inserting the connecting rod and piston group into the cylinder block, lubrie the connecting rod and piston group with clean machine oil.
Install the piston ring with the side marked "UP-1" facing the top of the piston. The colored stripes are towards the right of the piston ring end play.
The thickness of the new top piston ring is 3.32 mm (0.131 in).
Clearance between piston ring ends in a 110 mm (4.3 in) cylinder bore
for
0.40 ± 0.10 mm (0.016 ± 0.004 in).
Cylinder bore per increase
0.03 mm (0.001 in), the piston ring clearance increases
0.09 mm (0.004 in)
Install the piston ring with the side marked "UP-2" facing the top of the piston. The colored stripes are towards the right of the piston ring end play.
The thickness of the new intermediate piston ring is
2.980 ± 0.010 mm (0.1173 ± 0.0004 in).
Clearance between piston ring ends in 110 mm (4.3 in) cylinder bore
for
1.200 ± 0.125 mm (0.0472 ± 0.0049 in).
Cylinder bore per increase
0.03 mm (0.001 in), the piston ring clearance increases
0.09 mm (0.004 in)
|
